1、Product description:

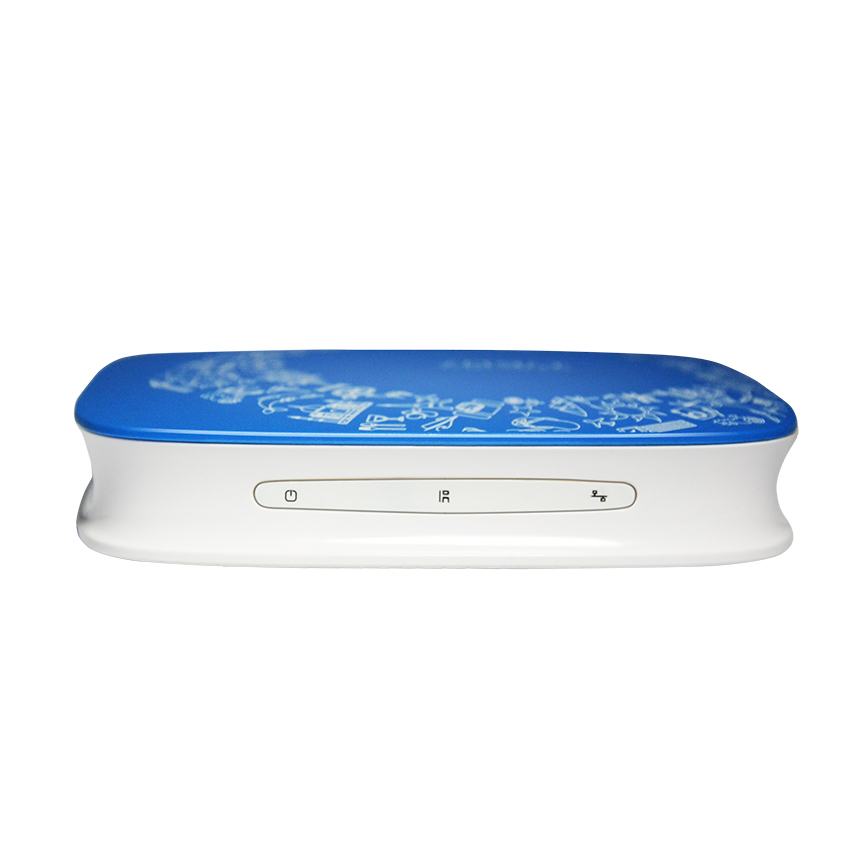

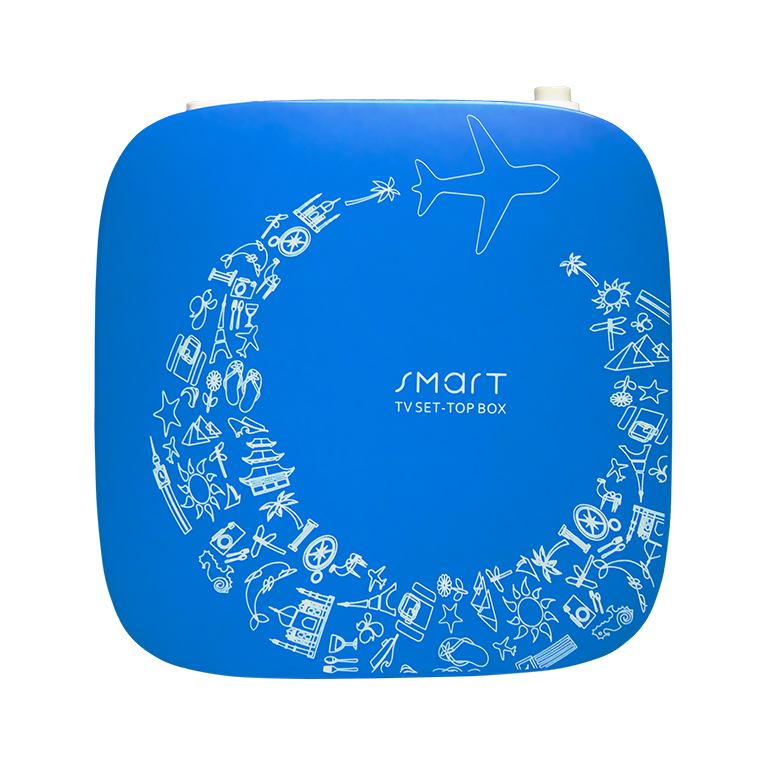

The MT-9280 is a high-performance wireless IP set-box,.It support all-purpose multi-media decoding,3D formatter,media-center function,and smart entertainment platform enabled by high performance CODEC engine,CPU and GPU.It has a high performance micro-processor embedded a ARM Cortex A7 quad Core CPU and a 3D Graphic GPU.The OTT Based on Android system can be directly connected by TV and audio playback device to the user.For the page information browsing, IPTV playback, Internet video and audio playback, application store, visual communication, home media sharing,Games and other interactive applications.The access side provides 1 Ethernet interface and a WiFi interface, it support IEEE 802.11b/g/n wireless and speed up to 300Mbps; the user side media interface provides 1 HDMI interface.A three in one out AV Mini interface (1 CVBS, 1 the left and right channel interface), 1 SPDIF interface, 1 Micro
SD card interface; the user side peripheral interface provides 2 USB2.0 interface and 1 infrared remote control interface.
2、 Product features:
Support PPPoE、DHCP、LAN Multiple access methods.
Support IPV4/IPV6
Support IEEE 802.11b/g/n
Support Bluetooth and camera
Support 10/100Mbps Ethernet RJ45 port
Support 2*USB port
Support 1* CVBS
Support 1*SPDIF
Support one Micro SD card interface
3、Product specification
| Hardware Features | ||||
| Protocol standards |
IEEE 802.11b、 IEEE 802.11g、IEEE 802.11n IEEE 802.3、IEEE 802.3u H.264 | |||
| Display standard | 1080p | |||
| bandwidth | 2Mbps | |||
| Audio output | 1 x HDMI 、1 x SPDIF 、1 x FIBER | |||
| Video output | 1 x HDMI 、1 x CVBS/S-video | |||
| Interface |
1*RJ45 FE (support auto MDI/MDIX) 1*SPDIF 1*CVBS 2*USB 2.0 1*Micro SD card 1*power jack 1*HDMI 1.4 | |||
| Button | One power switch button | |||
| LED | Power / network/ infrared | |||
| Power | DC 12V/1A | |||
| Wireless Features | ||||
| Basic functions |
Wireless enable/disable Channel selection：1-14 Channel Width：20MHz、40MHz | |||
| Frequency | 2.412----2.4835GHz | |||
| Transmission rate |
IEEE 802.11b: 1, 2, 5.5，11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 150，300Mbps (typical) | |||
| RF Power |
11n 14dBm±1.5dBm 11g 15dBm±1.5dBm 11b 17dBm±1.5dBm | |||
| Others | ||||
| Packing Accessories |
Ethernet cable*1(1M/ACC) User manual*1 Power supply Mini AV cable HDMI cable Battery Intrared Remote control | |||
| Power input | DC 12V/1A | |||
| Use Environment |
Operating Temperature：-10℃ to 40℃ Storage temperature：-20℃ to 70℃ Work Humidity：10% to 90%RH Non-condensing Storage Humidity：5% to 90%RH Non-condensing | |||
